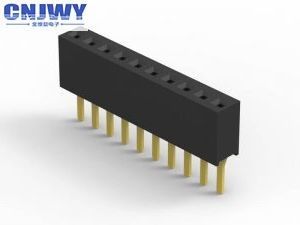

1000MΩ Min Insulation Resistance Solder Board To Board Connector for Long-Lasting Connections

Product Description:

One of the standout features of this PCB Header Connector is its color options. Customers have the choice of selecting the standard black color or customizing it to suit their specific design requirements. This flexibility in color customization allows for seamless integration with different types of custom PCB boards, ensuring a cohesive and professional look for the overall electronic system.

Operating in a wide temperature range is crucial for electronic components, and the PCB Header Connector excels in this aspect. With an impressive operational temperature range of -40℃ to +105℃, this connector can withstand extreme temperature variations without compromising its performance. Whether in environments with extreme cold or heat, this connector ensures reliable connectivity for your electronic systems.

When it comes to contact finish, the PCB Header Connector shines with its gold over nickel finish. This contact finish not only enhances the aesthetic appeal of the connector but also provides excellent conductivity and corrosion resistance. The gold over nickel finish ensures long-term durability and reliability, making it ideal for applications that require consistent and uninterrupted power delivery.

Another notable attribute of the PCB Header Connector is its contact shape, which features square pins. The square pin design offers a secure and stable connection between the connector and the custom PCB board, minimizing the risk of signal interference or disconnections. This design ensures a robust and reliable connection, making it suitable for high-performance electronic systems that demand precision and accuracy.

In summary, the PCB Header Connector is a top-of-the-line electronic component connector that excels in performance, durability, and versatility. With its customizable color options, wide operating temperature range, gold over nickel contact finish, and square pin contact shape, this connector is the perfect choice for custom PCB board applications, board-to-board power connectors, and a wide range of electronic connectivity needs. Trust the PCB Header Connector to deliver superior performance and reliability for your electronic systems.

Features:

• Product Name: PCB Header Connector
• Number of Row: Dual Row
• Contact Shape: Square Pin
• Operation Temperature: -40℃ To +105℃
• Pitch: 1.00mm(0.039'')
• Withstand Voltage: 500V AC/DC

Technical Parameters:

Applications:

JWY ST127-XXXXXX PCB Header Connector is a versatile and reliable component designed for various product application occasions and scenarios. Whether you are looking to connect circuit board wire connectors, custom PCB boards, or board to board connectors, this product is an excellent choice due to its exceptional features and specifications.

Manufactured in China, this PCB header connector holds multiple certifications including UL, SGS, RoHs, and REACH, ensuring high quality and compliance with international standards. With a minimum order quantity of 2Kpcs and negotiable pricing, it is accessible for both small-scale projects and larger production runs.

When it comes to payment terms, JWY offers flexibility with options for T/T and Western Union. Additionally, with a remarkable supply ability of 100,000pcs per day, you can rely on consistent availability to meet your project requirements.

The delivery time for the JWY ST127-XXXXXX PCB Header Connector is efficient, ranging from 7 to 15 working days. The product is packaged securely using PE/tray/tube/tape/reel packaging, ensuring safe transportation and storage.

Available in standard black color or customizable based on your preferences, this connector can seamlessly integrate into your design aesthetics. With a withstand voltage of 500V AC/DC, contact finish of gold over nickel, current rating of 1.0AMP, and insulation resistance of 1000MΩ Min, it offers superior performance and durability.

Support and Services:

The Product Technical Support and Services for the PCB Header Connector product include:

- Assistance with product installation and configuration

- Troubleshooting support for any issues related to the connector

- Guidance on compatibility with different devices and systems

- Product warranty information and support for returns or replacements

- Product documentation and resources for reference

Packing and Shipping:

Product Packaging for PCB Header Connector:

- The PCB header connector is carefully packaged in a protective plastic tray to prevent any damage during transit.

- The tray is then placed in a sturdy cardboard box with ample padding to ensure the product arrives safely.

Shipping Information:

- All orders are processed and shipped within 1-2 business days.

- We offer various shipping options including standard, expedited, and express delivery.

- Customers will receive a tracking number via email to monitor the status of their shipment.

FAQ:

Q: What is the brand name of the PCB Header Connector product?

A: The brand name is JWY.

Q: What is the model number of the PCB Header Connector product?

A: The model number is ST127-XXXXXX.

Q: What certifications does the PCB Header Connector product have?

A: The product is certified with UL, SGS, RoHs, and REACH.

Q: Where is the PCB Header Connector product manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for the PCB Header Connector product?

A: The minimum order quantity is 2Kpcs.
