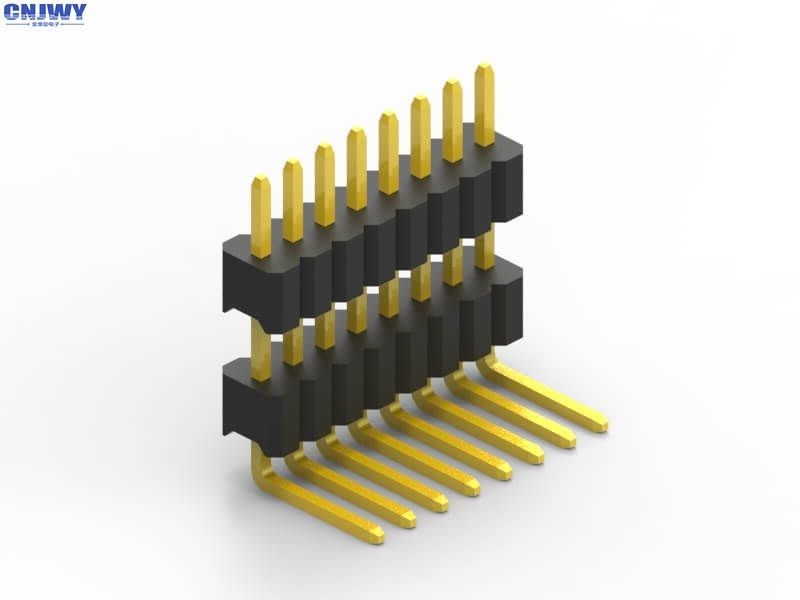

500V AC/DC PCB Header Connector With Insulation Resistance of 1000MΩ Min and Solder Termination for PCB Assembly Plants

500V AC/DC PCB Header Connector With Insulation Resistance of 1000MΩ Min and Solder Termination for PCB Assembly Plants

  • 500V AC/DC PCB Header Connector With Insulation Resistance of 1000MΩ Min and Solder Termination for PCB Assembly Plants
500V AC/DC PCB Header Connector With Insulation Resistance of 1000MΩ Min and Solder Termination for PCB Assembly Plants
Datos del producto:
Place of Origin: China
Nombre de la marca: JWY
Certificación: UL/SGS/RoHs/REACH
Model Number: ST127-XXXXXX
Pago y Envío Términos:
Minimum Order Quantity: 2Kpcs
Precio: negotiable
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contacto
Descripción detallada del producto
Insulation Resistance: 1000MΩ Min Number of Row: Dual Row
Withstand Voltage: 500V AC/DC Product Category: PCB Header Connector
Pin Available: 2 Pins To 40 Pins Contact Material: Copper Alloy
Mounting Type: SMD/SMT
Resaltar:

500V PCB header connector with solder termination

,

AC/DC PCB header connector for PCB assembly

,

PCB header connector with 1000MΩ insulation resistance

Product Description: With a focus on safety and quality, this connector has obtained multiple certifications including UL, SGS, RoHs, and REACH. These certifications ensure that the product meets strict industry standards and guidelines, giving you peace of mind when using it in your projects. The insulation material used in this connector is PA6T UL 94-V0, known for its excellent thermal and electrical properties. This material provides reliable insulation and protection for

etiqueta:

Conector de ángulo recto del PWB,

conector de pines para PCB,

cabezal de circuito impreso femenino
